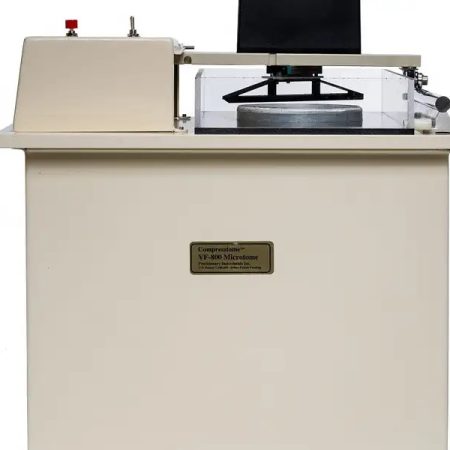

Compresstome® VF-800-0Z Tissue Slicer
Introduction
Compresstome® VF-800-0Z tissue slicer is a fully-automated large diameter vibrating microtome capable of embedding large organs or multiple samples simultaneously for preclinical uses. Experimental applications include:
- High-throughput tissue sectioning
- Slice cultures for drug screening
- Large diameter samples (i.e., primate brain)
Features and Benefits
- User-friendly controls: Fully integrated control box has intuitive control parameters for controlling tissue sectioning
- Compact Design: Small design for a vibratome that can section large tissues
- Ultra precision: custom made blades for ultra precision of large tissues
- Large cutting area: Can section samples up to 100 mm, or multiple samples
- Durable: Equipped with a powerful, cordless motor for quiet and durable operation
Specifications
| Advance Speed | 0-7 mm/s, adjustable |
| Return Speed | 10 mm/s, fixed |
| Vibration Frequency | 0-20 Hz, adjustable |
| Vibration Amplitude | 0.4 mm, fixed |
| Z-Axis Vibration | <4 µm |
| Compatible Cutting Blades | Ceramic blades Tungsten carbide blades |
| Cutting Angle | 20 degrees, fixed |
| Thickness Adjustment | Automatic, digital |
| Micrometer Resolution | 1 µm |
| Maximum Tissue Diameter | 100 mm |
| Maximum Tissue Length | 90 mm |
| Slice Thickness Range | 40 µm to 2000 µm |
| Cutting Modes | Single or continuous, selectable |
| Buffer Tray Size | 290 x 160 x 40 mm |
| Power Source | AC 100-110V, 200-240V |
| Power Consumption | 8W |
| Dimensions (L x W x H) | 350 x 380 x 380 mm |
| Weight | 15 kg |
