Compresstome® VF-210-0Z Tissue Slicer
Introduction

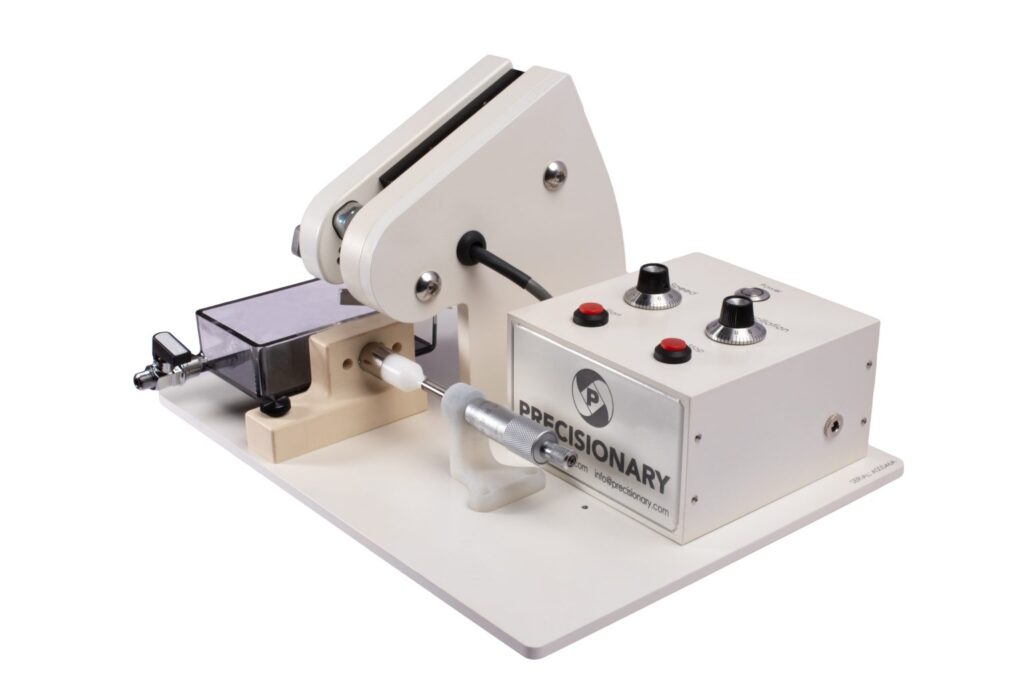

Compresstome® VF-210-0Z is a semi-automated vibrating microtome great for sectioning fresh tissues.
- Great for electrophysiology
- Consistent, high quality slices
- Easy to operate
Features and Benefits
- Durable: Equipped with a powerful, cordless motor for quiet and durable operation
- Compatible with multiple blade types: New magnetic blade holder allows for easy magnetic attachment of stainless steel blades, or glue-on attachment of ceramic and tungsten blades
- Easy to clean: Removable buffer tray and tube base allow for easy cleaning and changing tube sizes
- User-friendly controls: Fully integrated control box has intuitive control parameters for controlling tissue sectioning
- Compact design: A fraction of the size of a legacy Vibratome, the Compresstome can easily fit into a hood, and takes much less space on your bench
Specifications
| Advance Speed | 0-4 mm / s, adjustable |
| Return Speed | 10 mm/s |
| Vibration Frequency | 0-65 Hz, adjustable |
| Vibration Amplitude | 1.2 mm |
| Z-axis Vibration | ~0 μm (Z-axis deflection) |
| Blade |
|
| Cutting Angle | 15 degrees (no need for blade alignment) |
| Slice Thickness Adjustment | Manual |
| Micrometer Resolution | 10 μm |
| Maximum Tissue Diameter |
|
| Maximum Tissue Length | 25 mm |
| Minimum Slice Thickness | 10 µm (Quality tested down to 20 µm) |
| Cutting Mode | Single |
| Cutting Bath | 110 x 60 x 30 mm |
| Dimension (L x W x H) | 330 x 255 x 195 mm |
| Weight | 5 Kg |
