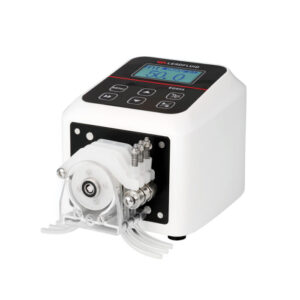

BQ80S
Introduction
BQ80S variable-speed peristaltic pump in the previous generation on the basis of the appearance design optimization and product function upgrade, low flow rate of 0.001-34ml/min, speed accuracy<±0.2%, added mobile phone App remote control, locked rotor alarm, leakage alarm and smart functions, human-computer interaction more friendly. BQ80S is used for precise transmission of small flow liquids and high precision dispensing, suitable for instrument matching and laboratory use.
Features
- Using the cortex m3 core processor, the running speed is fast and the device speed accuracy is high
- LCD display, switching between Chinese-English interface, simple parameter setting, intuitive state display
- Mobile App remote control (optional), the remote pump operation can be realized by using Lead Fluid APP software. It also has monitoring functions such as operating status (optional)
- locked rotor alarm, leakage alarm (optional). And send the alarm signal to your mobile APP, remind you to deal with it in time, avoid unnecessary losses
- The tube life alarm function dynamically calculates the remaining service life of the tube and reminds you to replace the tube in time
- Added slow stop function to make the equipment run more reliable
- Start/stop, reversible direction, full speed and adjust speed, state memory (power-down memory)
- External analog adjust speed, external control start-stop, reversible direction, external control signal physical isolation
- The type of external speed control signal (voltage or current) can be switched on the control panel
- Dustproof and moisture-proof circuit board design, external control signal supports 5-24V wide voltage input, super anti-interference characteristic
- Design of injection shell, effectively prevent the erosion of various organic solvents, easy to clean.
- RS485 communication, MODBUS protocol is available, easy to connect with other equipment
- Open multiple control parameters, suitable for ODM custom applications
Specifications
| Drive Type | BQ80S |
| Max. Channel | 3 |
| Flow Range (mL/min) | 0.0035~34 |
| Speed Range (rpm) | 0.1～80 |
| Speed Resolution (rpm) | 0.1 |
| Speed Accuracy (%) | 0.2 |
| Working Time (S/Min/H/D) | 0.1～999 |
| Communication Interface | RS485, MODBUS |
| Power Supply | AC100～240V |
| Power Consumption | <10W |
| Working Environment | 0～40℃ |
| IP Grade | 31 |
| Dimension(LxWxH mm) | 152x112x107 |
BQ80S Suitable pump heads and flow parameters
| Drive type | Pump head | Ch | Tubing size(mm) | Flow rate (mL/min) per channel |
BQ80S (Pump heads not inter changeable) | DW10-1 | 1 | WALL:0.8-1 ID≤3.17 | 0.001-32 |
| DW10-3 | 3 | WALL:0.8-1 ID≤3.17 | 0.001-32 |
